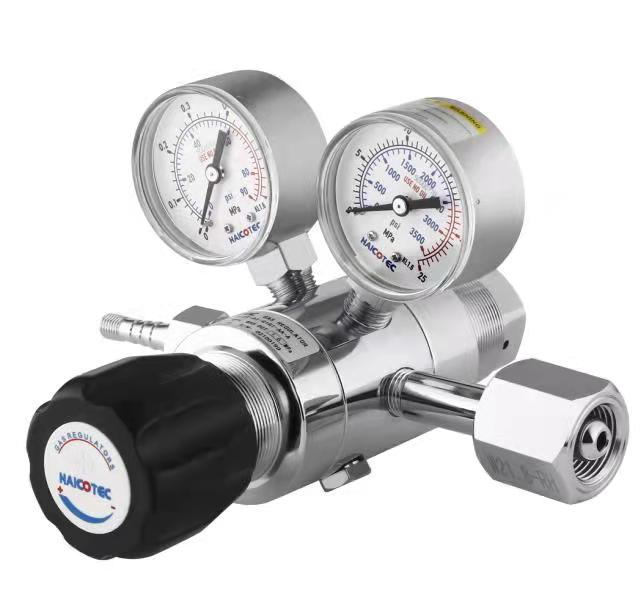

G02T型雙級減壓閥
G02T Type Two-stage Pressure Reducing Valve
G02T型雙級標準流量減壓閥，雙極式調壓結構，輸出壓力更穩定；適用于非腐蝕性氣體等
G02T type two-stage standard flow pressure reducing valve, with a two-stage pressure regulating structure, provides more stable output pressure. It is suitable for non-corrosive gases, etc.
適用范圍：實驗室、分析儀器、一般工業氣體、工廠設備
Application scope: laboratories, analytical instruments, general industrial gases, factory equipment
技術參數：最大輸入壓力：3000psig
可控輸出壓力：0至15/24/35/60/90/150/240psig
工作溫度：-10至+60℃
閥體螺紋：NPT1/4”F
Technical parameters: Maximum input pressure: 3000 psig
Controllable output pressure: 0 to 15/24/35/60/90/150/240 psig
Operating temperature: -10 to +60℃
Valve body thread: NPT 1/4”F
部件材質：閥體、提升閥針、提升閥座：HPb59-1
提升閥密封墊：NBR/EPDM
膜片：NBR/EPDM
Component materials: Valve body, lift valve needle, lift valve seat: HPb59-1
Lift valve sealing gasket: NBR/EPDM
Diaphragm: NBR/EPDM
產品特點:雙極式調壓結構結構，輸出壓力更精確、更穩定。
純凈水清洗
進口采用不銹鋼金屬過濾網
采用精度1.6KL壓力表
Product features: Two-stage pressure regulating structure for more accurate and stable output pressure.
Purified water washable
Inlet with stainless steel metal filter screen
Equipped with 1.6KL precision pressure gauge
【參考】為產品改良而未提前通知變更的尺寸，請與我公司聯系了解。
[Reference] For dimensions changed due to product improvement without prior notice, please contact our company for details.
【注】1、使用壓力應該在壓力表全量程的60%以內
2、1MPA=10bar=9.87atm=145.03psig=10.2kg/cm2=7500mmHg
[Note] 1. The operating pressure should be within 60% of the full scale of the pressure gauge.
2. 1 MPA = 10 bar = 9.87 atm = 145.03 psig = 10.2 kg/cm2 = 7500 mmHg
